Introducing Uniview!
Are you looking to increase the security of your home or business? Look no further than the Uniview range of IP cameras! These digital marvels allow you to remotely monitor your premises, giving you peace of mind at home or on the go. Plus, with advanced features like motion detection, line crossing, and intrusion detection, you’ll always be alerted to any activity on your property. And with high resolution and image processing capabilities, you’ll get crystal clear, detailed images that can be used for identification purposes. Plus, installation is a breeze and they’re more cost-effective than traditional analog cameras if you compare the quality with the price point at which these cameras hit the market. Don’t wait – upgrade your security system with Uniview cameras today!

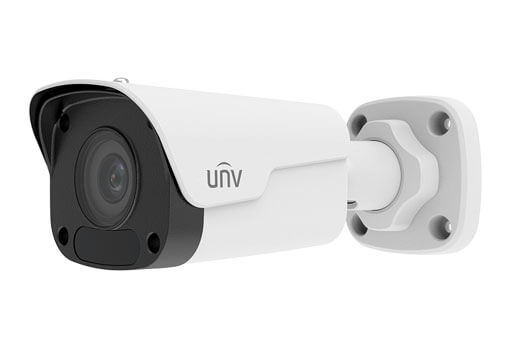

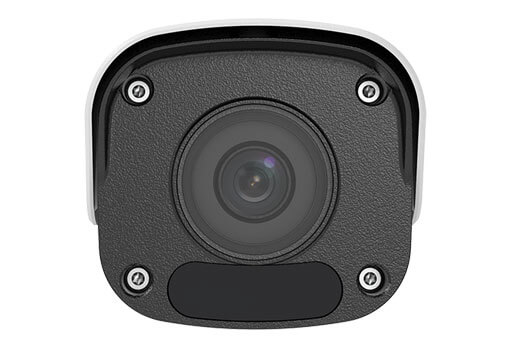

Uniview’s 1080p security camera is an affordable and reliable solution for surveillance and security. With 1080p resolution, it captures detailed footage that is clear and easy to see, even when viewed on a larger screen. Its affordability and user-friendly interface make it an excellent choice for anyone looking to keep an eye on their home, business, or public space. Its simple, intuitive design and straightforward setup make it easy to install and use, and its impressive image quality makes it a dependable choice for keeping your space safe and secure. Whether you’re on a budget or simply looking for a high-quality camera at an affordable price, the Uniview 1080p camera is a great option.
Downloads
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra H.265,H.265, H.264
• Smart IR, up to 30m (98ft) IR distance
• Day/night functionality
• 2D/3D DNR (Digital Noise Reduction)
• Supports Micro SD card
• DC12V or PoE(IEEE 802.3af) power supply
• IP67 protection
• 3-Axis
| Camera | ||||||
| Sensor | 1/2.9″, 2.0 megapixel, progressive scan, CMOS | |||||
| Min. Illumination | Colour:0.01 lux (F2.0, AGC ON) 0 lux with IR |
|||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| WDR | DWDR | |||||
| S/N | >55dB | |||||
| Lens | ||||||
| Lens type | [email protected] | [email protected] | ||||
| Iris | Fixed | |||||
| Field of View (H) | 101.1 | 83.7 | ||||
| Field of View (V) | 55.0° | 44.6 | ||||
| Field of View (D) | 111.0° | 89.1 | ||||
| DORI | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 45.0(147.6ft) | 18.0(59.1ft) | 9.0(29.5ft) | 4.5(14.8ft) | ||
| 4.0 | 64.3(210.9ft) | 25.7(84.4ft) | 12.9(42.2ft) | 6.4(21,1ft) | ||
| Illuminator | ||||||
| IR Range | Up to 30m (98 ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra H.265,H.265, H.264 | |||||
| Frame Rate | Main Stream: 2MP (1920*1080),Max 30fps; 720P (1280*720),Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
|||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||
| Video Bit Rate | 128 Kbps~6144Kbps | |||||
| U-code | Support | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas per scene | |||||
| ROI | Up to 8 areas | |||||
| Video stream | Dual streams | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180° | |||||
| Dewarping | N/A | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Defog | Digital Defog | |||||
| Events | ||||||
| Basic Detection | Motion detection | |||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 128 GB | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP,RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, Qos, ,SSL/TLS | |||||
| Compatible Integration | ONVIF (Profile S, Profile T, Profile G),API,SDK | |||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF | |||||
| Client | EZStation EZLive EZView |
|||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | ||||||
| Interface | ||||||
| Audio I/O | N/A | |||||
| Alarm I/O | N/A | |||||
| Serial Port | N/A | |||||
| Built-in Mic | N/A | |||||
| Built-in Speaker | N/A | |||||
| WIFI | N/A | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
| Video Output | N/A | |||||
| Certification | ||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||
| General | ||||||
| Power | DC12V(±25%) , PoE(IEEE 802.3af) | |||||
| Power consumption: Max 5W | ||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||
| Dimensions (L x W x H) | 161 × 62 ×63mm (6.4”× 2.4” × 2.5”) | |||||
| Weight | 0.207kg(0.46lb) | |||||
| Material | Plastic | |||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Surge protection | 4KV | |||||
| Reset button | N/A | |||||
